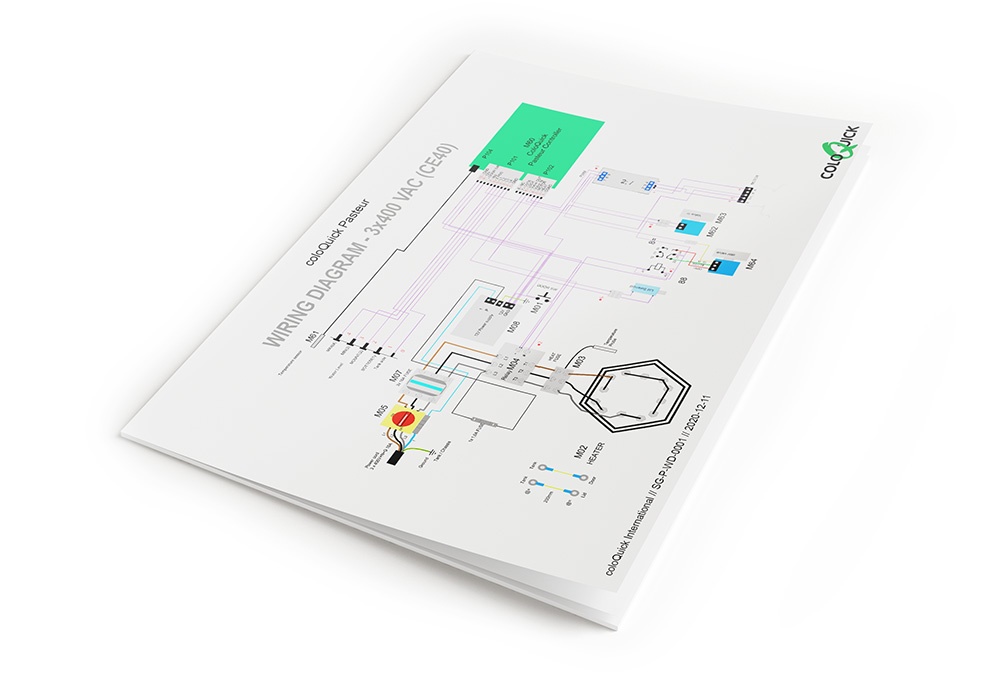

Wiring diagram

Wiring diagram: Motor valve

Diagnostic Menu

SILICONE APPLICATION

HEATING ELEMENT

ERROR CODES

Program logs and error queue

Error codes explained

ASSEMBLY GUIDES

Assembly: Pasteur

Assembly: Cold water Hookup

USER MANUALS

USER MANUAL
PASTEUR/MAXX4

Old User manual
[DA] [EN] [DE] [FR] [ES] [RU]

Old Service manual
[DA] [EN] [DE]

DOWNLOAD SOFTWARE

Version 2.47a

INSTRUCTION VIDEOS

How to adjust time intervals in a THAW program on a ColoQuick Pasteur:

Pasteur
Software update:

Customized pasteurization
program:

INSIDE PASTEUR WATER BATH

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A+B: Complete plastic cartridge holder: #8020055

A: Shaft for cartridge holder: #807105

B: End of plastic cartridge holder: #807406

C: Center shaft for gear motor: #807102

D: Rubber seal for hatch & door (2m): #807002

E: Grounding cable: #805029

F: Level sensor: #805014

G: Housing for level sensor: #805012

H: Digital temperature sensor 70 cm RJ10: #805006
Pasteur II for CE number: 40xxxxxx, 41xxxxxx, 50xxxxxx

I: Sensor tube, stainless: #807014

J: Heating element 3x230V, 6kW: #805001A

INSIDE LID – EU MODEL: 3x400V+N+PE (Triple phase)

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Contactor 20A /4P 12VDC: #804020

B: Resettable fuse, 16A /3P: #804022

C: Controller 12-24 VDC: #804033

D: USB cable 0.5m A-A: #804051

E: Lid switch: #804001

F: USB internal to extend IP68 A-A: #804052

G: PSU 12V / 6A 88-264V: #804003

H: Fuse, glass, 1.6A 5x20mm: #804024

I: Fuse cover, 5x20mm: #804023

J: Front for fuse cover: #804025

K: Switch element for neutral wire: #804019

L: Main switch 40A/ 3P: #804018

INSIDE LID – EU MODEL: 230V+N+PE (Single phase)

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Contactor 40A/ 3P 12VDC: #804029

B: Resettable fuse, 40AC/ 3P: #804030

C: Controller 12-24 VDC: #804033

D: USB cable 0.5m A-A: #804051

E: Lid switch: #804001

F: USB internal to extend IP68 A-A: #804052

G: PSU 12V / 6A 88-264V: #804003

H: Resettable fuse, 4AC/2P: #804031

I: Switch element for neutral wire: #804019

J: Main switch 40A/ 3P: #804018

LEFT SIDE:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Lock bracket: #807008

B: Locking hinge: #807009

C1: Nut 5mm door: #802063
C2: Nut 8mm door: #802062

D: USB internal to extend IP68 A-A: #804052

E: Rubber Seal, for hatch & door 2.00m.: #807002

BACK:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Bearing complete: #803101

B: Coil for lid lock: #805011

C: Magnetic valve, water, ½ inch: #805007

D: Plug for magnetic valve, ½ inch: #805008

E: Hose connector, 1 inch, ss304: #807312

INSIDE FRONT:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Heat fuse 95C: #805003

B: Gear motor: #805004

C: PWM booster (400): #805010A

D: Digital temperature sensor 70cm RJ10: #805006
Pasteur II for CE number: 40xxxxxx, 41xxxxxx, 50xxxxxx

E: Heating element 3x230V, 6kW: #805001A

F: Fiber gasket for heating element: #807001

G: Bridge for heating element: #805002A

INSIDE FRONT TOP:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Bearing complete: #803101

B: Socket for relay: #804035

C: Relay, 12 VDC: #804036

D: Diode module 6-24 VDC for relay: #804037

E: Bolt M4x40: #807215

F: Lock nut M4: #807222

G: Clutch for gear motor: #807103A

H: PWM booster (400): #805010A

FRONT – LID CLOSED:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Main switch 40A/ 3P: #804018

B: Transfer panel for Pasteur: #804034

C: coloQuick logo sticker 120x50mm: #808002

RIGHT SIDE:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Hinge for door: #807007

B: Hinge for hatch: #807006

C: Stop-bracket for upper hatch: #807104C

BOTTOM:

CLICK ON ITEM NUMBER TO VISIT PRODUCT PAGE:

A: Hose connector 1 inch, ss304: #807312

B: Motor valve 1 inch, water out: #805009A

C: Cable for motor valve 1 inch, Pasteur II: #805009C

D: Magnetic valve, water inch: #805007

E: Plug for magnetic valve: #805008

F: Ball valve 1/2 inch: #807304
